Main features:
Suitable for big multi-functional facilities; this sports floor can be easily removed and is therefore recommended in case the surface needs
to be used for trade fairs, concerts, events without the risk of damaging the parquet. This kind of floor was supplied in occasion of
International sports events with excellent results and satisfaction by all professional Teams who have played on it.
Short technical description:

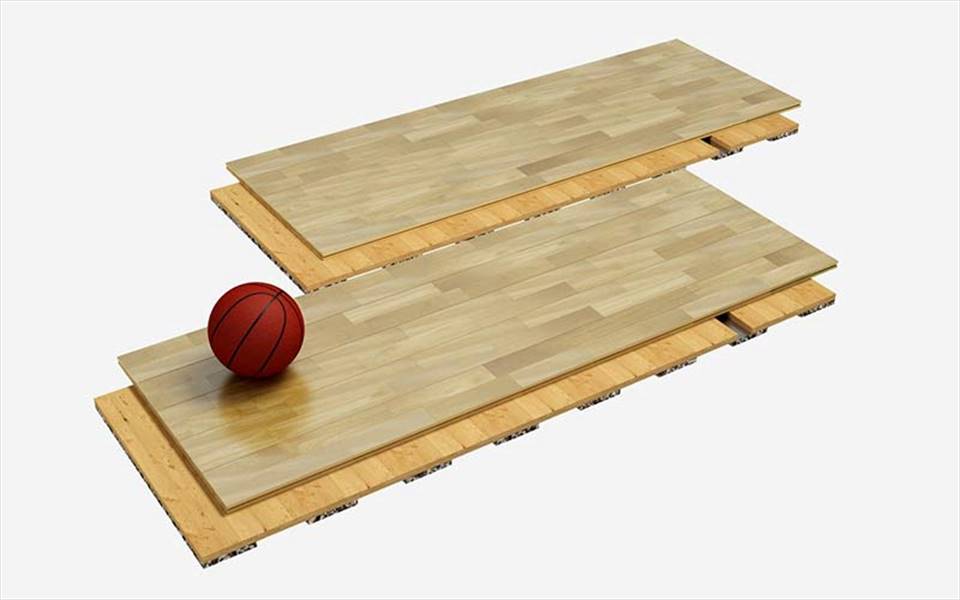

Panels consisting of top layer made of solid wood 22 mm thickness, fixed to a wooden single plywood understructure onto elastic
PUR mattress; perimetric finishing metal connection.
Installation:
The main steps of making the portable sports floor model STELVIO are:
Standard dimensions of the panel: mm 645 x mm 1830 X mm 55
Weight of each panel: 29 Kg
Disassembly (for a m 19x32 = 608 sqm court): 4 workers normally need an average time of 4 hours
Panels are numbered to make the re-assembly easier
Technical features:
Elastic layer made of PUR compound foam strips, 15 mm thickness;
Bottom layer of the elements made of plywood plates, 18 mm thickness;
Treatment by means of a special impregnating fireproof lacquer, anti-humidity, anti-fungus and bacteria-resistant;
Parquet floor made of HEVEA RUBBER WOOD fixed to the bottom layer of the elements; parquet thickness mm 22, width mm 129,
length mm 1830 (two strips, finger-jointed); its a tropical wood, very light colored, very stable, excellent in case of humidity, prelacquered
by means of 7 coats of UV lacquer;
Game line markings for volleyball, basketball, handball or soccer; colors on Customers choice;
Possible perimetric finishing metal connection;
Possible iron ramp to help place backstop units;
This kind of floor belongs to the floating floors category, and grants both constant flexibility and ball rebound on the whole surface;
Possible supply of forklifts for stocking carts.
Certifications:
Sports parquet floor - FIBA certified
EN 14904 Certification
EN 13501 Fire resistance Certificate
