Main features:
High-performance sports floor; 14 mm thickness engineered parquet – 4 mm thickness wearing layer – is combined with the new Air Flex elastic pad, enhancing flexibility features of wood. This model has been developed for professional competitions.
Brief technical description:

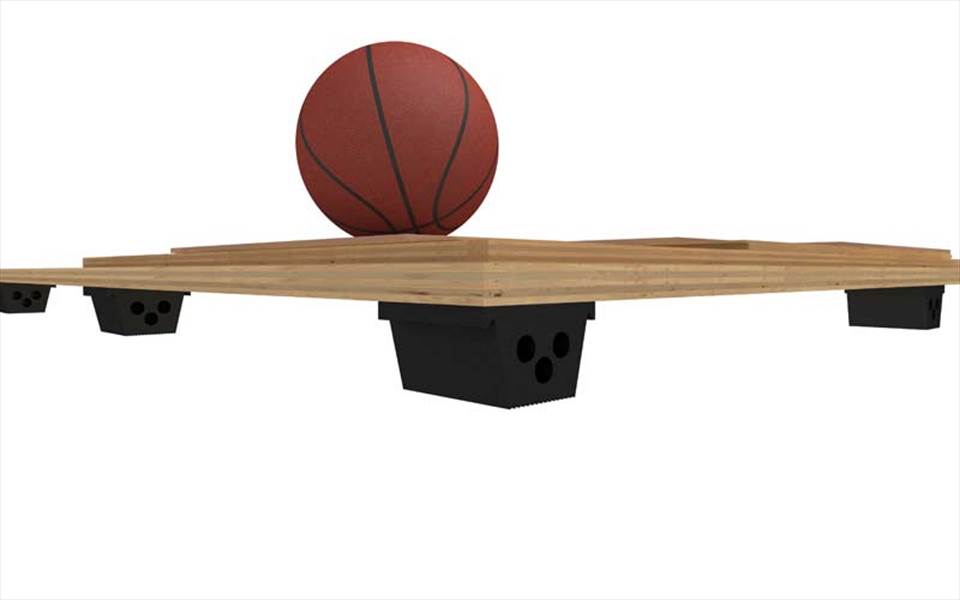

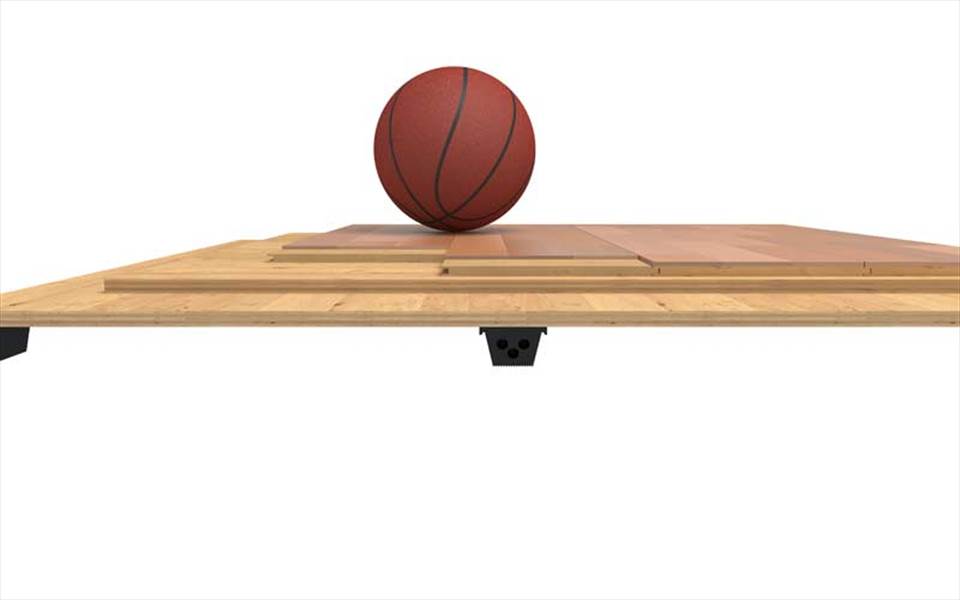

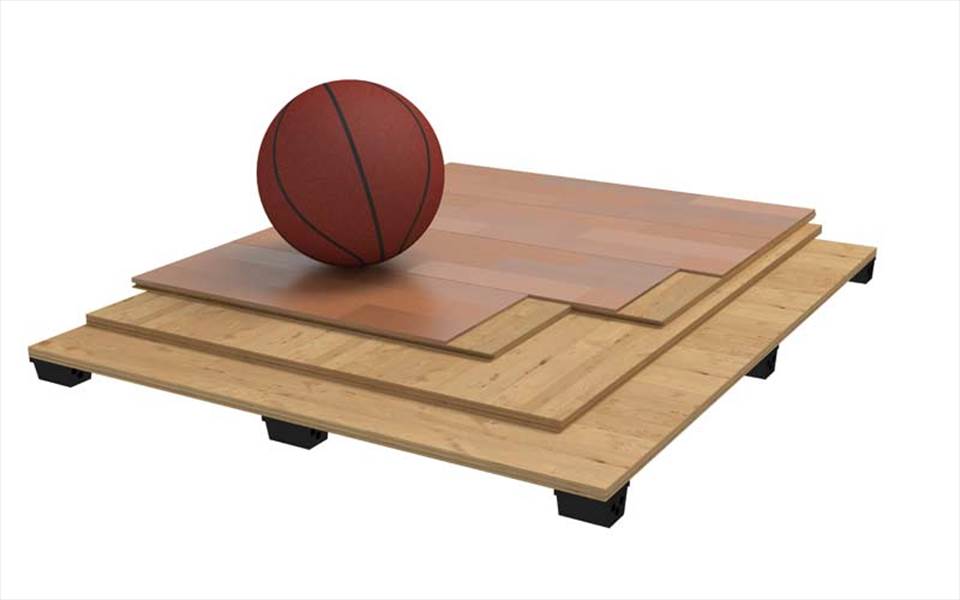

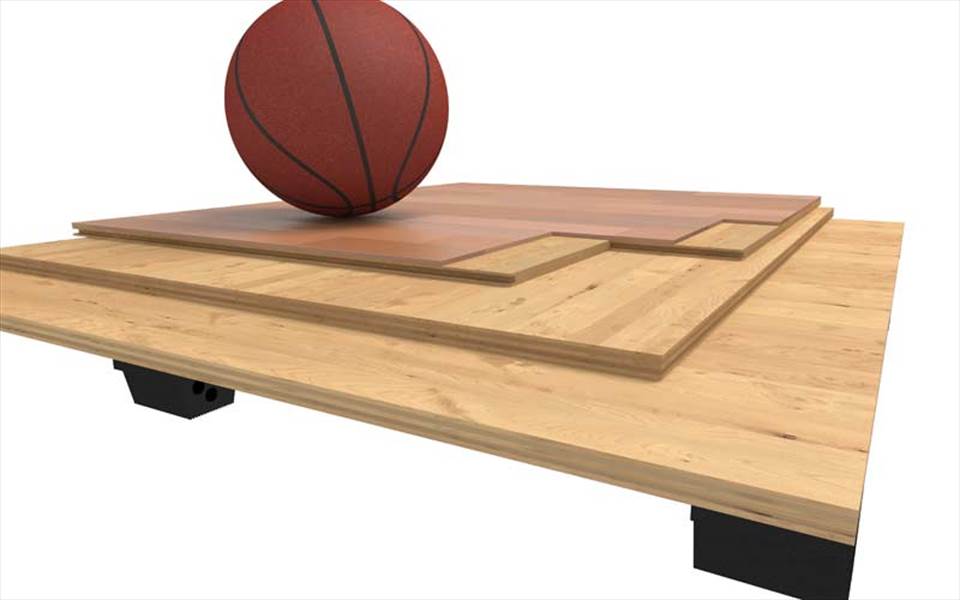

Sports floor consisting of top layer made of engineered parquet, 14 mm thickness, 4 mm thickness wearing layer, understructure made of continuous double plywood plates and Air Flex elastic pad. Total thickness 68 mm.
Technical description:
The main steps of making PRO AIR-FLEX sports floor are the following:
• 0.15 mm thickness polyethylene rolls between concrete and structure
• Spring layer consisting of double plywood plates, 12 mm thickness each, total 24 mm
• Panels are stapled to each other
• "Air flex rubber cushion” elastic neoprene pad, 30 mm thickness, conic trapezoidal shaped, developed in order to ensure high flexibility; pads are stapled to the structure
• Top layer consisting of engineered parquet elements, 14 mm thickness, 4 mm thickness wearing layer, nailed to the spring layer by T-shaped nails
• Finishing with game line marking and colors on playground area according to the respective Federations’ Rules
Certifications:
• EN 14904 Area Elastic Sports Floors Certification
• EN 13501 Fire reaction
• Product data sheet
